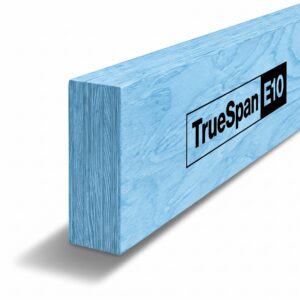

TrueSpan E10 LVL

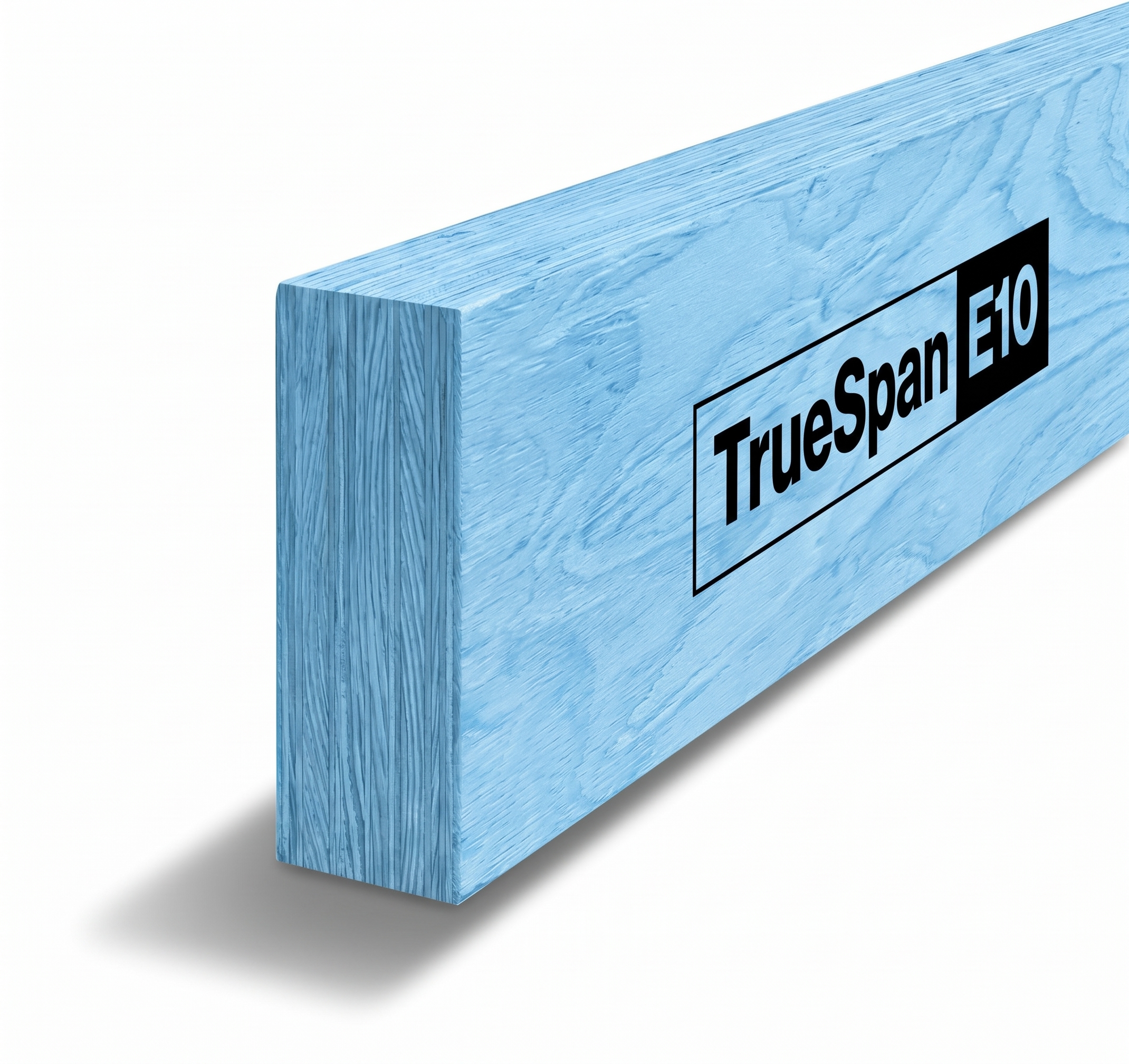

TrueSpan E10 is a structural laminated veneer lumber engineered as a direct replacement for MGP10 pine — straighter, stronger and more consistent from stud to lintel. Manufactured by Tilling Timber and in-grade tested to AS/NZS 4357 & 4063, every length carries the blue TrueSpan stamp so it's unmistakable on site.
Every length stamped blue — spot it on any site.
Performance
Faster, more accurate builds.
Natural pine moves, bows and varies. TrueSpan E10 doesn't. As a laminated veneer lumber it's built up from graded veneers bonded under pressure, delivering a straight, stable, predictable section from studs to lintels — no packing, no planing, and far less waste on site.
TrueSpan E10 is an E10 grade LVL suited to any application where LVL is permitted across residential and light commercial framing. For spans and connection design, refer to the specification sheet and your project engineer.
- Perfectly straight walls — studs to lintels with no packing or planing.
- Direct MGP10 replacement — slots into the same framing details.
- Meets or exceeds MGP10 — reliable, consistent structural properties.
- In-grade tested — to AS/NZS 4357 & 4063 for dependable design values.
Range
Available sizes.
TrueSpan E10 is available in 35 mm and 45 mm widths across a full range of depths. Lengths are supplied to order.
| Width | Available depths (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| 35 mm | 70 | 90 | 120 | 140 | 170 | 190 | 240 | 290 |
| 45 mm | 70 | 90 | 120 | 140 | 190 | 240 | 290 | 300 |
Please contact the sales team to confirm sizes and lengths available in your state.
Specifications
Product & compliance.
- Product
- TrueSpan LVL
- Grade
- E10
- Structural application
- Framing
- Standards
- AS/NZS 4357 & 4063
- Grading method
- In-grade
- Strength group
- SD6
- Joint group (JD)
- JD4
- Average density
- 580 kg/m³
- Moisture content
- 12–15%
- Manufactured by
- Tilling Timber
Treatment
- Supplied H2S treated as standard for termite protection south of the Tropic of Capricorn.
- H2 treatment available as an option.
Compliance
- In-grade tested to AS/NZS 4357 & AS/NZS 4063.
- Characteristic values certified for design to AS1720.1-2010.
- Engineered and certified by Tilling Timber's national product engineer.
Design values & strength properties
Characteristic strength properties
Dry service conditions, per AS/NZS 4357 (MPa).
| Property | Symbol | MPa |
|---|---|---|
| Bending (edge & flat) | f′b | 36 |
| Tension parallel | f′t | 25 |
| Compression parallel | f′c | 28 |
| Compression perp. (edge & flat) | f′p | 10 |
| Shear (edge & flat) | f′s | 4.5 |
| Shear at joint | f′sj | 2.2 |
| Elastic modulus (avg) | E | 10,000 |
| Modulus of rigidity (avg) | G | 500 |
Bending & tension by depth
Characteristic values modified for volume effect (MPa).
| Depth (mm) | f′b | f′t |
|---|---|---|
| 70 | 36 | 25 |
| 90 | 36 | 25 |
| 120 | 34.3 | 25 |
| 140 | 33.4 | 25 |
| 170 | 32.4 | 24.5 |
| 190 | 31.8 | 24.0 |
| 240 | 30.6 | 23.1 |
| 290 | 29.6 | 22.4 |
| 300 | 29.4 | 22.3 |
Capacity reduction factors (ø)
0.95
Secondary / domestic < 25 m²
0.90
Primary, non-domestic
0.80
Primary, post-disaster
Joint group for hanger design (nails & bolts): JD4 face, edge and end.
Design notes
- Characteristic values apply to dry service conditions.
- For beams deeper than 90 mm, multiply by (90/d)0.167, where d is member depth.
- For LVL on the flat thicker than 45 mm, multiply by (45/t)0.333, where t is member thickness.
- For tension members with the larger cross-section > 150 mm, multiply by (150/d)0.167.
Certified for use with AS1720.1-2010. National Product Engineer: Craig Kay RPEng (Civil) — PEDDD1869, RPEDS100, BDC0730, CC5635C, NER. Revision 3 Sep 2025.
Downloads
Documentation.
| PDF TrueSpan E10 — Specification Sheet | 44 KB | Download |
| Design guide & span tables | — | On request |
Get in touch
Talk to us about your next job.
Whether you'd like product advice, pricing or supply for an upcoming build, the TrueSpan team is ready to help. Get in touch and we'll get you the right sizes, on time.
1300 854 918
